| Check out our advanced ease of use and accurate mixing concentration. |

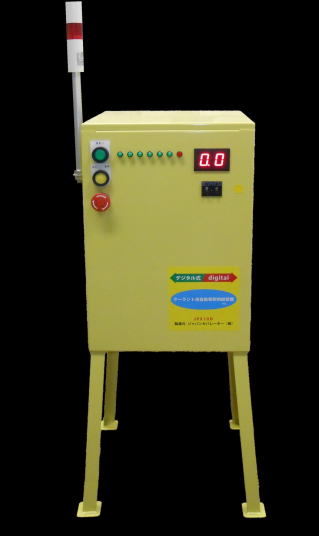

| Digital type automatic coolant dilution supply device |
JPX-10D NEW TIPE！ |
| Compact design that doesn't take up much space Easy installation for quick start-up |
| JPX-10D Main features ・Patent pending ・The digital method allows you to visually check the desired concentration ・Can be used with tap water or industrial water ・Accurately measures the concentration of the original solution in 0.1%, 0.2%, 0.3% and up to 10% in 0.1% increments ・To dilute, measure 10L of water, operate the digital switch to measure the original solution, and use the displayed value to easily create the desired concentration. ・No matter when you make the liquid, the concentration will not change ・The diluted liquid is stirred in the tank with a propeller. ・Transfer to SUB tank and pool the liquid ・Furthermore, the liquid is automatically replenished from the SUB tank to the machine tool - unmanned operation ・The sensors, relay devices, and motor valves required for automatic replenishment are included as standard equipment. ・Tank side sensor available: Keyence FL001 or FR-SO1 ・Space-saving, does not take up much space, 0.4m x 0.4m, easy to move, approximately 30kg ・Uses AC100V power supply Air Pressure0.5Mpa ・Low price ・PH measuring device required for liquid life (OPTION) ・The 18L can of concentrate fits under the machine. ・There will be absolutely no liquid leaks within the factory! Numerous ・ safety devices are monitoring the situation. |
| JPX-10D Specifications |
|
| Body dimensions | width400×4Depth00×height950(mm) |
| Power supply used | Single Phase100V 300W |
| How to take in the stock solution | Direct pump suction from a pail |
| Appropriate water pressure | 0.15Mpa〜0.35Mpa(tap water or industrial water) |
| SUB tank capacity | about15L |
| Coolant liquid production capacity | 10L/5min |
| Mixture concentration | 0～5% or5～10% (0.1%unit) |
|
Concentration variation
|
Setting concentration±0.5% |

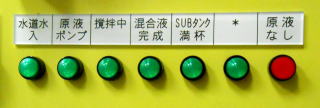

| Insufficient stock solution | Patrol light on |
| Density adjustment | Digital switch settings |
| Changes in concentration due to temperature, viscosity, and water pressure | none |
| Mixing Equipment | Yes |
| Filling the machine tank with oil | Sensors, control relays, and ball valves are standard equipment |
| The highly reliable Keyence sensor is available as standard equipment. | |
| Radar type FR-S01 | Guided pulse type FL-001 |
 |
 |
Get a quote here↑
